WALL AND ROOF PANEL
METAL SANDWICH PANEL
1. Innovative double –support plug interface design ensures that wall have stronger wind pressure -resistant capacity and solider.
2. There panels of multiple functions ,types and colors for your choice . The quality and beautiful products can meet more personalized requirements on comfort in the building industry .
3. European technology + Chinese wisdom offer safer products. The products have passed the tests conducted by national authoritative organizations and are used more confidently.
ROCK WOOL SANDWICH COMPOSITE PANEL
1. Produced for meeting the high fire-proof requirement of building.
2. The high-quality rock wool composite panel “Color Gold”.
3. The product uses high-quality water proof rock as the core material.
4. The super long precision double-track , curing.
5. The product is excellent in terms of fire prevention.
6. The sound reduction factor is no less than 30dB.
7. Fire Prevention high quality water-proof rock wool and class A fire proof performance.

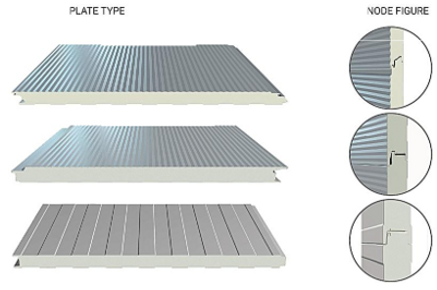

TONGUE AND GROOVE SANDWICH WALL PANEL
1. The surface is even smooth and elegant with an impressive metal texture.
2. Energy Saving - Excellent thermal insulation effect.
3. Product of different widths for choice
4. Tongue-and- Groove connection and non silicon resin caulking connection.
5. Simple construction processes and excellent operability.
SANDWICH COMPOSITE PANEL - PUR/PIR
1. The best solution to energy conversation of buildings,excellent thermal insulation.
2. Beautiful Facade
3. Solid and Durable
4. Patented Design
5. Multiple Choices
SANDWICH PANEL - WOOL + PU
FIRE - PROOF PANEL
COLD ROOM SYSTEM
COLD STORAGE CLADDING SYSTEM
WHAT IS COLD STORAGE PANEL ?
A new composite panel which takes light rigid polyurethane foams as the core materials and colorful steel plates or stainless steel plates as the surface material.
1. Low thermal conductivity≤0.020. It has a high-efficient thermal insulation effect.
2. High percentage of close area ≥90% and low moisture absorption ≤3%. It has an excellent waterproof effect.
3. It adopts the unique concave-convex type which improves the tightness of the socket of the panel. High viscosity, high strength ≥220 and good load resistance performance ≥2450.
4. Excellent flame resistance level B.
5. Wide scope of temperature resistance.
6. The panel is even and stable.
7. The dimensional stability is good ≤2mm.
8. It is a green and environmental-friendly product.
9. Easy and convenient construction.
10. Fast and quick installation.
Introduction of Polyurethane
Polyurethane (PU) is a polymer formed by the reaction of an isocyanate with a polyol, a foaming agent and a flame retardant.
Polyurethane material is the best insulation material in theworld. Including hard polyurethane plastics, soft polyurethane plastics, polyurethane elastomers and other forms, and divided into two categories of thermoplastic and thermosetting. The raw materials are usually in the form of resin.
Isocyanate + polyester polyol → PIR (level B1) PUR (level B2 and B3)
Insulation Effect - Compared with different core materials
Compared with other building materials, PU sandwich panel can effectively prevent cold energy transmission due to the larger temperature difference between the inside and the outside, so cold storages are more energy - saving and the working efficiency of cold rooms is improved.
